JOHN R
Item Description
Detroit Steel Wheel Co. John R wheels are the perfect choice to add that finishing touch to your ride. Built with Steel, these wheels are both strong and stunning.
Available Sizes
18” Diameter: 18x7, 18x8, 18x9, 18x10
20” Diameter: 20x8, 20x9, 20x10, 20x11, 20x14
22” Diameter: 22x9
Available Sizes
- 18” Diameter: 18x7, 18x8, 18x9, 18x10
- 20” Diameter: 20x8, 20x9, 20x10, 20x11, 20x14
- 22” Diameter: 22x9
Please note: wheel width measurements are from bead-to-bead (where the tire seats to the wheel). All wheels will measure an inch wider from lip-to-lip. For an example: 20x8's- Measure 8" wide from bead-to-bead, but 9" overall in width from lip-to-lip.
Available Lug Patterns
5 Lug Wheels: 5x4.5/5x4.75 (Dual Lug), 5x5 (Single Lug), 5x5.5 (Single Lug)
6 Lug Wheels: 6x5.5 (Single Lug)
Available Lug Patterns
- 5 Lug Wheels:
- 5x4.5/5x4.75 (Dual Lug)
- 5x5 (Single Lug)
- 5x5.5 (Single Lug)
- 6 Lug Wheels:
- 6x5.5 (Single Lug)
Available Finishes
Raw – Bare Metal
Gloss Black Powder Coat
Low Gloss Black (Satin) Powder Coat
9010 Gloss Off-White Powder Coat
9010 Low Gloss Off-White Powder Coat
Bright White Powder Coat
Satin Silver Powder Coat
*Pinstripping available as well
Available Finishes
- Raw – Bare Metal
- Gloss Black Powder Coat
- Low Gloss Black (Satin) Powder Coat
- Gloss White Powder Coat (Bright White)
- 9010 Low Gloss White (Satin) Powder Coat (Off White)
- 9010 Gloss White Powder Coat (Off White)
- Metallic Silver Powder Coat
Available Offsets/ Backspacing
18x7: 3.5”, 3.75”
18x8: 3.5” - 4.75”
18x9: 3.5” - 5.75”
18x10: 3.5” - 6.5”
20x8: 3.5” - 4.75”
20x9: 3.5” - 5.75”
20x10: 3.5” - 6.5”
20x11: 3.5” - 7.5”
20x14: 3.5” - 10.5”
22x9: 3.0” - 4.5”
*Half Inch Increments
Available Offsets/Backspacing
- 18x7: 3.50" – 3.75”
- 18x8: 3.50” – 4.75”
- 18x9: 3.50” – 5.75”
- 18x10: 3.50" – 6.75”
- 20x8: 3.50” – 4.75”
- 20x9: 3.50” – 5.75”
- 20x10: 3.50” – 6.75”
- 20x11: 3.50” – 7.50”
- 20x14: 3.50” – 10.50”
- 22x9: 3.0”, 3.5”, 4.0”, and 4.5”
John R Gallery

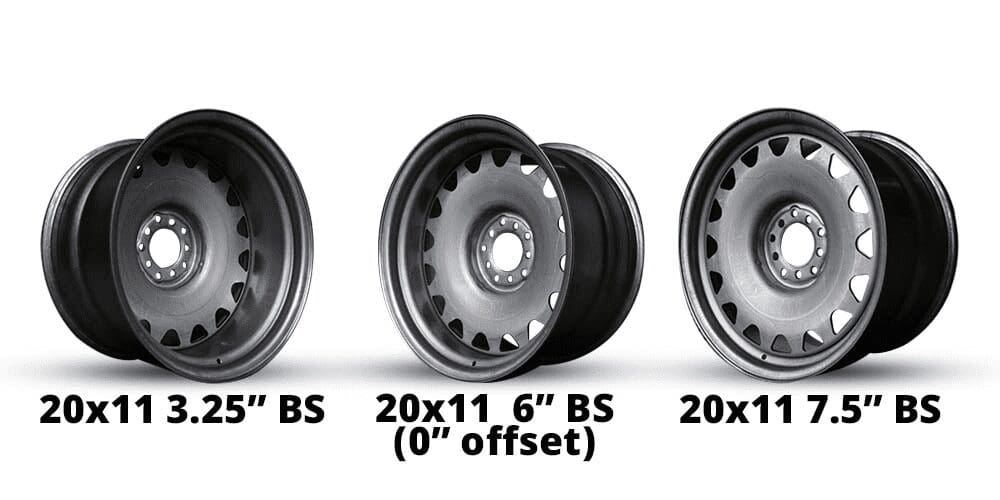

Additional Product Photos – Backspacing Options.
